Enter the size of your garage

Measurement guide

Pick your slat height

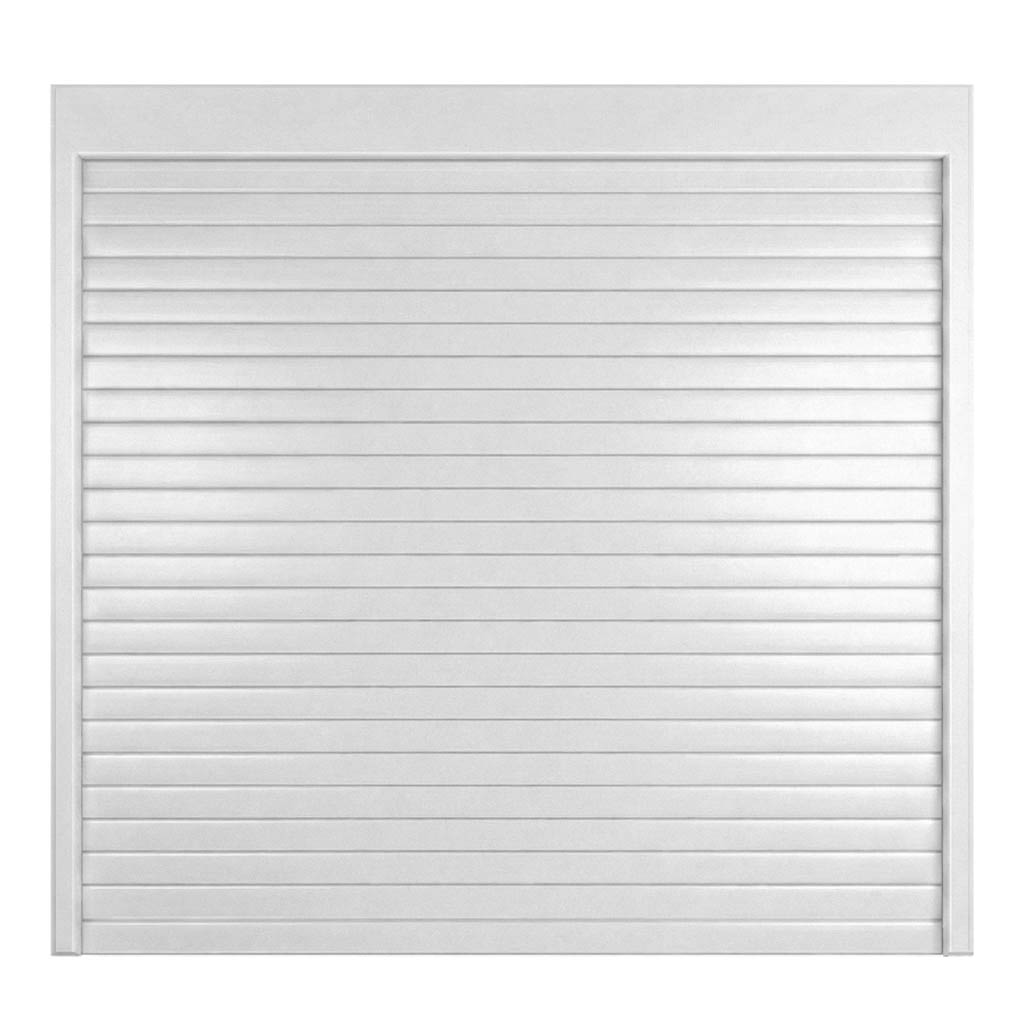

Our standard for double and large single garages. Provides maximum insulation, superior security, and a premium "solid" feel. Built to last a lifetime.
Engineered for smaller single garages with limited headroom. A lightweight, space-saving solution that doesn't compromise on our manufacturing quality.
Back

Pick your colour

Colour not available?

We have more colours available. If you don't see the colour you want call us (0191 6917810) or add a note in the additional notes field on the final page.

Pick your box type

What is a box type?

Pick your extras

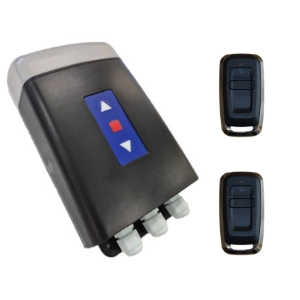

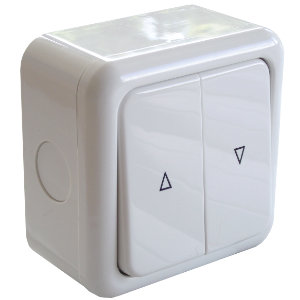

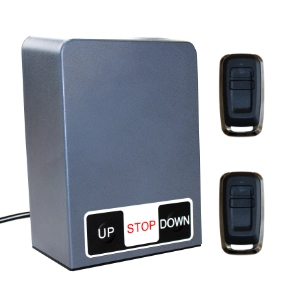

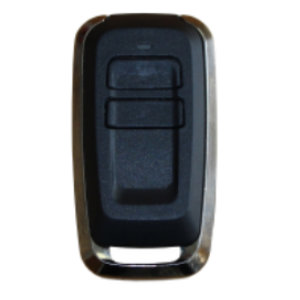

All doors are electronically operated and come with a rocker switch. remote control and extras can be added below.

Enter your details

What happens next

Once we have recieved your payment, one of our expert engineers will call you. We will review your measurements, confirm your delivery details, and answer any final questions. We do not cut any metal until we have spoken to you and confirmed everything is correct.

Cost Breakdown

Base door Price: £0.00
Colour: £0.00
Extras: £0.00
Postage: £0.00
VAT: £0.00

Total

£0.00

Box type

We offer two different box types for our domestic doors:

Full box

  • The Look: Completely encloses the roll in a sleek aluminum housing.
  • The Benefit: Protects the motor and curtain from dust, grit, and nesting birds. It’s also a vital safety barrier if you use your garage for storage or as a workshop.
  • Verdict: Choose this for a "clean" professional finish and maximum longevity.

Half box

  • The Look: An L-shaped fascia that covers the front and top. The back of the roll remains visible from inside the garage.
  • The Benefit: Saves on cost while still providing a neat appearance from the driveway.
  • Verdict: Best if you are on a budget and don't mind seeing the mechanism from inside the garage.

How to measure for your door

We manufacture your door based on the "Daylight" size (the actual hole in the wall).

Step 1: The Width

Measure the width between the brickwork at the top, middle, and bottom. Use the widest measurement.

Step 2: The Height

Measure from the internal floor to the underside of the lintel. Ensure the floor is level.

Step 3: Headroom & Sideroom

  • 77mm Slat: Needs 300mm above the lintel.
  • 55mm Slat: Needs 205mm above the lintel.
  • Sideroom: You need 75mm on each side for the guide rails.

Contact us

Fill in your details and we'll be in touch within 24 hours. We won't share your details with anyone.
